How do you rotate a 3D model in Revit?

How do you rotate a 3D model in Revit?

How do you rotate a 3D model in Revit?

To Rotate a 3D Object Around an Axis

  1. Click Home tab > Modify panel > Rotate 3D. Find. ...
  2. Select the object to rotate (1).
  3. Specify the start point and endpoint of the axis about which the objects are to be rotated (2 and 3). ...
  4. Specify the angle of rotation.

How do you rotate a model in Revit?

Do one of the following:

  1. Select the elements to rotate, and then click Modify | tab Modify panel (Rotate).
  2. Click Modify tab Modify panel (Rotate), select the elements to rotate, and then press Enter .
  3. Selecting the Rotate after placement option on the Options Bar when placing a component.

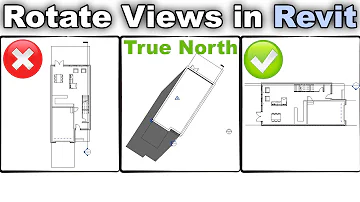

How do you rotate a work view in Revit?

6:2611:28How to Rotate Views in Revit Tutorial - YouTubeYouTubeStart of suggested clipEnd of suggested clipView you can go to rotate. You get your basic rotate tool and then if I rotate this by the value ofMoreView you can go to rotate. You get your basic rotate tool and then if I rotate this by the value of 90 degrees. As. You can see now it's horizontal.

How do I rotate 3D view?

To rotate the 3D view:

  1. Click the Rotate View tool from the Visualization tool set.
  2. Click the mode from the Tool bar.
  3. To rotate the view, click the drawing and drag while holding the mouse button. Move the cursor to rotate the view in the direction of the cursor movement. Release the mouse button to stop the rotation.

How do you rotate a 3D part inventor?

On the ribbon, click Assemble tab Position panel Free Rotate . Click the component to rotate. Drag to the appropriate view of the component. To rotate in any direction, click inside the 3D rotate symbol and drag in the appropriate direction.

How do I add a rotation parameter in Revit family?

Go to the Modify tab, then the Properties panel, and select the Family Types button. Next to the Rotation Angle parameter, type in a new value and pick the Apply button. Verify that the Reference Line rotates as desired. Pick the OK button when you are satisfied that it rotates as desired.

How do I change the orientation of a Revit?

  1. Open a plan view, and, in the Properties palette, confirm that the Orientation property is defined as Project North. ...
  2. Click Manage tab Project Location panel Position drop-down Rotate Project North.
  3. In the Rotate Project dialog, select the desired option.
  4. Click OK.

How do you rotate a whole plan in Revit?

3:325:36Revit 2016 Rotate Project North Revised - YouTubeYouTube

Can you rotate levels in Revit?

After you can see the boundary, select it. Now click rotate on the Conceptual tab> Modify panel> Rotate. Move the rotation base point to a reference point that you want to use.

How would you rotate pan and zoom a 3D view?

Rotating and Moving and Zooming in the 3D viewer

  1. Keyboard shortcut: Pressing the Ctrl+R key will activate Rotate mode in the 3D view.
  2. For Rotate operations, the 'V' modifier enables tilting but disables rotating around the pivot axis; the 'H' modifier disables tilting but enables rotation.

How to rotate a project in Autodesk Revit?

Click Manage tab Project Location panel Position drop-down Rotate Project North. In the Rotate Project dialog, select the desired option. Click OK. A message displays to indicate that the model was rotated. Verify the results in all plan views. The message also shows errors, if any. You can export errors to review and correct them.

Is there a way to rotate a 3D view?

You can rotate a 3D view about this axis by modifying the camera level and its focal point. You can tile your project views to see the effects of the rotation in different views. Open the 3D view and any other views where you want to see the effects of rotation. Click View tab Windows panel (Tile).

Can you rotate single Revit elements in free space?

This feature is not available right now. Please try again later. Rotate single Revit families, multiple elements connected to each other, assemblies or groups around X, Y, and Z axis in any view, including 3D views by using the intuitive rotation helper provided by the Rotate elements in free space tool.

How do you rotate a group in Autodesk?

1. Open the 3D View, ensure all elements you wish to rotate are visible, select everything that you wish to rotate, click Create Group. 2. Navigate back to floor plan view, select group, start Rotate tool. 3. Rotate group as needed, then ungroup when complete.
