Why cold joints are harmful for concrete?
A cold joint is an advancing face of a concrete pour, which could not be covered by fresh concrete before concrete has begin to set due to stoppage, delay or low rate of pour placement. The fresh concrete can not create bond with cold joint and should always be avoided in concrete.
How do you treat cold joints in concrete?
High pressure flexible polyurethane injection. The high-pressure injection procedure allows the insertion of a liquid into a very narrow crack. The technician will drill holes along the cold concrete joint and ensure that the holes and joint on the concrete surface are properly cleaned.
Why are cold joints bad?
Concrete cold joints occur due to many reasons. If the joint has compression forces there is no structural problem but aesthetically it should be avoided. Cold joints may lead to failure if the joint is in tension.
What is a cold seam in concrete?
A cold joint is a sign that too much time elapsed between successive concrete pours. ... If they don't pour the slab or the second lift soon enough, that first batch of concrete may begin to dry, preventing it from properly intermixing with successive batches.
How long does it take to get a cold joint in concrete?
As the others have said, any concrete poured against set concrete is considered a cold joint or construction joint. Initial set will occur unsually from 1 - 3 hours after concrete is placed.
How do you identify cold joints in concrete?
Ultrasonic Pulse Velocity (UPV) is an effective non-destructive testing (NDT) method for quality control of concrete materials, and evaluating concrete integrity on or around the cold joint. Ultrasonic testing of concrete is an effective way for quality assessment and uniformity, and crack depth estimation.

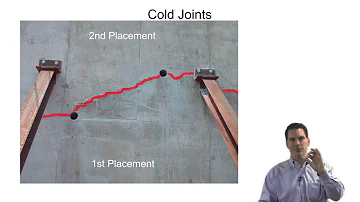

What does a cold joint in concrete look like?
Cold joints look like cracks at times, but they occur when a contractor pours concrete in a form to a certain height or point and then stops. Then the poured concrete sets up and becomes hard.
What is the difference between cold joint and construction joint?
A construction joint is the interface between concrete placements intentionally created to facilitate construction. A cold joint is a joint or discontinuity resulting from a delay in placement of sufficient duration to preclude intermingling and bonding of the material, or where mortar or plaster rejoin or meet.
Is concrete safe to layer?
Maintenance: As you can imagine, layering concrete on top of concrete can eliminate the low maintenance that concrete is often admired for. For example, pouring new concrete on an existing slab brings a chance of frost heaves to the equation. So, knowing how thick a concrete slab should be, is a must for a good result.
Is it OK if it rains after pouring concrete?
Pouring Concrete in Rain. ... Pouring concrete in the rain can compromise its strength, increasing the tendency for dusting and scaling to develop. Once the damage is done, it can be hard to rectify and will often ruin the appearance of the finished surface. Don't let it rain on your parade.
What does it mean to have a cold joint in concrete?
Cold Joint in Concrete and Methods of Treatment. A cold joint is an advancing face of a concrete pour, which could not be covered by fresh concrete before concrete has begin to set due to stoppage, delay or low rate of pour placement.
How long does it take for a cold joint to harden?
When Cold Joint has Hardened. In case the concrete at the joint has become so stiff that it cannot be remoulded and mortar or slurry does not rise in spite of extensive vibration, the joint is left to harden for at least 12 – 24 hrs.
Can a hand pick be used to remove cold joint concrete?
When Cold Joint is Hardened a Bit In case concrete has hardened a bit more than plastic state but can still be easily removed by a light hand pick, the surface will be raked thoroughly and the loose concrete removed completely without disturbing the rest of the concrete in depth.
When to put fresh concrete on old concrete?
a) If concrete is so green that it can be removed manually and if vibrators can penetrate the surface without much effort, fresh concrete can be placed directly against the old surface. The old concrete should be covered by fresh concrete as quickly as possible and the joint thoroughly and systematically vibrated.
